NVR DC

Name: NVR DC
SKU: 831
Availability: InStock

Price range: R4723,05 through R6957,50

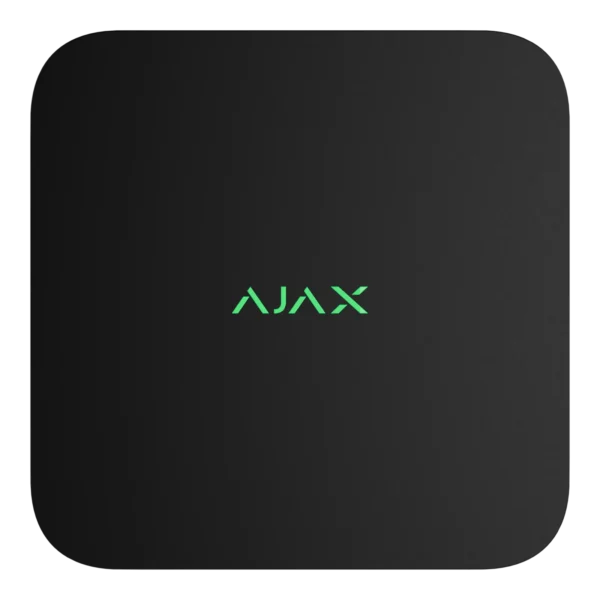

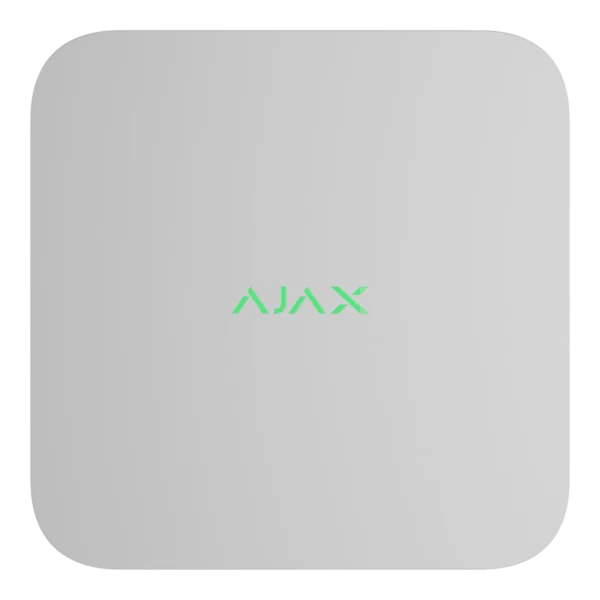

Network video recorder powered from a 9–16 V⎓ low-voltage source, available in 8-channel and 16-channel versions with up to 4K recording. Hard drive not included.

Channel count

Colour

Clear

Free delivery

Orders over R2,500, countrywide

24-month warranty

Claims handled locally by us

Easy returns

Unused, in original packaging

SKU: N/A Category: CCTV

Description

Network video recorder powered from a 9–16 V⎓ low-voltage source, available in 8-channel and 16-channel versions with up to 4K recording. Hard drive not included.

Specifications

Video stream

NVR models	8-channel 16-channel With up to 4K resolution (25/30 FPS).
IP cameras	ONVIF (Profile S/T) RTSP
Storage	hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size) HDD is not included. A hard drive with power consumption of up to 7 W can be connected.
Decoding formats	H.265 H.264
Bandwidth	up to 100 Mbit/s

Recommendations

The device's operating voltage is 9–16 V⎓.
NVR DC is designed for indoor installation only.

Communication channels

Ethernet	up to 100 Mbit/s
Bluetooth	BLE frequency band: 2.400–2.4835 GHz To set up an Ethernet connection.
Radio signal power	2.5 mW (with the 100 mW limit)

Key features

Motion detection	NVR DC features built-in software to detect movement in the frame. It is possible to switch between image analysis by NVR DC or camera algorithms in an Ajax app.
In-app video management system	Videowall that combines images from all connected cameras. Event filters. Timeline with smooth preview.
Visual verification of Ajax alarms	NVR DC allows for setting up a scenario in which Ajax detectors trigger specific cameras to start recording. The result is immediately delivered to mobile and desktop apps.
ONVIF®	conformant with ONVIF® Profile G and S The device implements ONVIF® H.265 (HEVC) encoding, transmission of motion detection and AI recognition events, control over Wide Dynamic Range (WDR), and other image settings — not ONVIF® profile or add-on conformant.
Privacy	Access rights distribution for users in mobile apps and for monitoring company operators in PRO Desktop.

Power supply

Without an installed jumper on the PSU board	8–16 V⎓, up to 4 A 8 V⎓ — turn-on threshold when the voltage rises 6.5 V⎓ — turn-off threshold when the voltage drops
With an installed jumper on the PSU board	12.1–16 V⎓, up to 4 A 12.1 V⎓ — turn-on threshold when the voltage rises 10.35 V⎓ — turn-off threshold when the voltage drops
Power consumption	up to 24 W
Clock battery	CR2032 battery, 3 V Only to power the system clock.

Sabotage protection

Tamper alarm	Notifications of an attempt to detach the device from the surface or remove it from the mounting panel.

Enclosure

Dimensions	193 × 193 × 47 mm
Weight	583 g Without a hard drive.
Operating temperature range	from 0 °C to +40 °C
Operating humidity	up to 75%
Protection class	IP20
Colour	Black White

In the box

NVR DC
SmartBracket mounting panel
Terminal adapter
Ethernet cable
Installation kit
Quick start guide

Warranty: 24 months

Additional information

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “NVR DC”

Installation & warranty

Installed by us, or delivered to your door

We supply, install and configure Ajax systems across St Helena Bay and the West Coast. Anywhere else in South Africa, we deliver by courier — free on orders over R2,500.

24-month warranty, handled locally

Qualifying Ajax equipment carries a 24-month product warranty. If something goes wrong, you deal with us directly.

No compulsory monthly app fee

Full control and notifications in the Ajax app are included with the system. There is no compulsory monthly Ajax subscription.

Book a free assessment

WhatsApp us

Google reviews

What West Coast clients say

5 out of 5 stars

“Very professional, and quick to respond. Their knowledge in this field is exceptional, and they know their products very well. … If it was possible, I would have given them 6 STARS!”

Henk K.
Camera upgrade, alarm and home automation

5 out of 5 stars

“After a horrific attack on our property, I contacted Ghostech to install a reliable security system to protect our family … They installed a state of the art system that tick all the boxes.”

Ernst d. P.
Full system after a break-in

5 out of 5 stars

“They also added gate automation to the Ajax system. Their service has been excellent and the whole system works so well, all off our mobile phones, from anywhere.”

Daniel B.
Alarm, cameras and gate, Britannia Bay

5 out of 5 stars

“Ghostech makes life so much easier with their amazing Ajax products. I can control everything remotely from my phone, including cameras, no matter where I am.”

Maroline V. V.
Ajax alarm and cameras

5 out of 5 stars

“Received great advice on where to place the security features. The team are very helpful and friendly and are highly recommended.”

David K.
Property security

5.0

Every review on our Google Business Profile is five stars. Read them all, or add your own.

Read our Google reviews

Free assessment

Not sure what your property needs?

A free on-site assessment, honest advice on what your property actually requires, and an installed price with no obligation.

Book an assessment

Call 082 348 4755

Weight	0,583 kg
Dimensions	19,3 × 19,3 × 4,7 cm
Channel count	16-ch, 8-ch
Colour	Black, White

NVR DC

Related products

DoorBell

NVR H2D16PAC (16-ch)

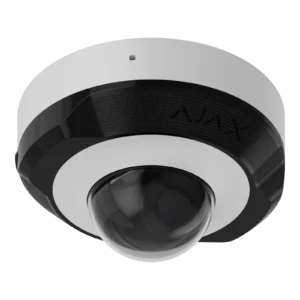

DomeCam Mini

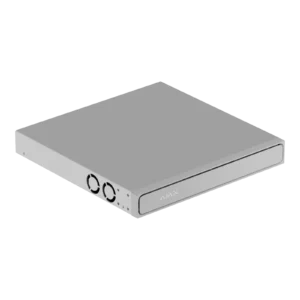

NVR H2D8PAC
