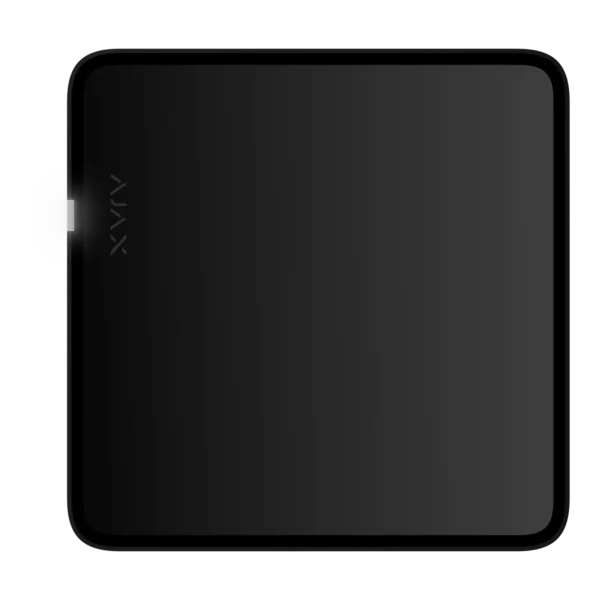

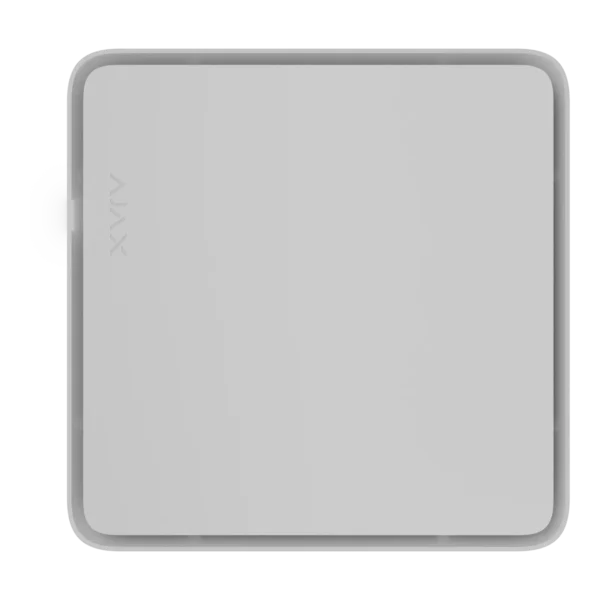

NVR HAC

Name: NVR HAC
SKU: 836
Availability: InStock

Price range: R5430,30 through R8002,85

8-channel or 16-channel network video recorder with HDMI output for a local monitor.

Channel count

Colour

Clear

Free delivery

Orders over R2,500, countrywide

24-month warranty

Claims handled locally by us

Easy returns

Unused, in original packaging

SKU: N/A Category: CCTV

Description

8-channel or 16-channel network video recorder with HDMI output for a local monitor.

Specifications

Video

Video input	8-ch: 8 channels 16-ch: 16 channels
Recording resolution	8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI output resolution	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 px
Live view / playback resolution	8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF

Decoding

Format	H.265, H.264, JetSparrow
Capability	8-ch: 1 × channel at 8MP; 3 × channel at 5MP; 4 × channel at 4MP; 4 × channel at 1080p; 8 × channel at 720p; 8 × channel at 1024 × 576 px 16-ch: 1 × channel at 8MP; 3 × channel at 5MP; 4 × channel at 4MP; 4 × channel at 1080p; 10 × channel at 720p; 16 × channel at 1024 × 576 px
Live view window division	templates: 1, 4, 9, 16, 5+1, 7+1 views custom: up to 10×10 views
Synchronous playback	8-ch: 8 channels 16-ch: 16 channels

Intelligent video analytics

Motion detection	8-ch: Ajax camera: 8 channels; NVR: 8 channels 16-ch: Ajax camera: 16 channels; NVR: 16 channels
AI object detection	8-ch: Ajax camera: 8 channels 16-ch: Ajax camera: 16 channels

Interface

HDD/SSD	HDD or SSD is not included.
Network	1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
USB	rear panel: 1 × USB 2.0 (Type-A) side panel: 1 × USB 2.0 (Type-A) To connect a keyboard, mouse, or a USB flash drive.

Network

Bandwidth	incoming: up to 80 Mbps outgoing: up to 40 Mbps
Protocol	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS
ONVIF®	conformant with ONVIF® Profile G and S The device implements ONVIF® H.265 (HEVC) encoding, transmission of motion detection events, control over Wide Dynamic Range (WDR), and other image settings — not ONVIF® profile or add-on conformant.

Key features

Supported devices	Ajax cameras IP cameras that conform to ONVIF® Profiles RTSP
Built-in video management system	Integrated video wall interface with live camera feeds. Smart event filters for quick access to relevant footage. Interactive timeline with preview navigation for efficient playback and incident review.
Visual verification of Ajax system alarms	NVR HAC supports a scenario in which events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall. This allows for immediate intrusion verification by the operator.
Privacy	Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner’s preferences.

Recommendations

The device operating voltage is 110–240 V~.
The device is designed for indoor installation only.

Power supply

Main	110–240 V, 50/60 Hz, 0.6 A
Power consumption	up to 24 W
Clock battery	CR2032 battery, 3 V Only to power the system clock.

Enclosure

Dimensions	212 × 212 × 64 mm
Weight	782 g Without a drive.
Operating temperature range	from 0 °C to +40 °C
Operating humidity	up to 75%
Protection class	IP20
Colour	Black White

In the box

NVR HAC
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
Quick start guide

Warranty: 24 months
